Step 1 - Center Console MOLLE Panel Install 3rd Gen Tacoma

Description

Step by step on how to install a center console molle panel.

Installation Video: https://www.youtube.com/watch?v=X6VZvlzZSZk

Questions or Support:
Phone: 269-353-1184
Email: info@victory4x4.com

Step 2 - Mounting - Marking Holes

Description

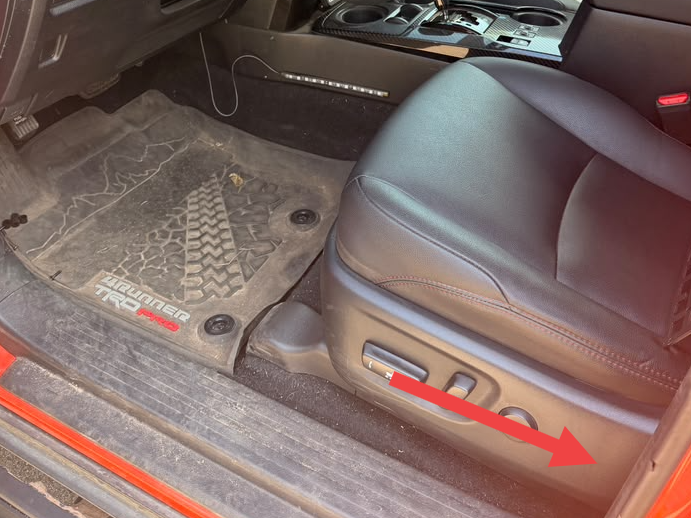

Move your seat all the way back to make as much room as possible before installing the panel.

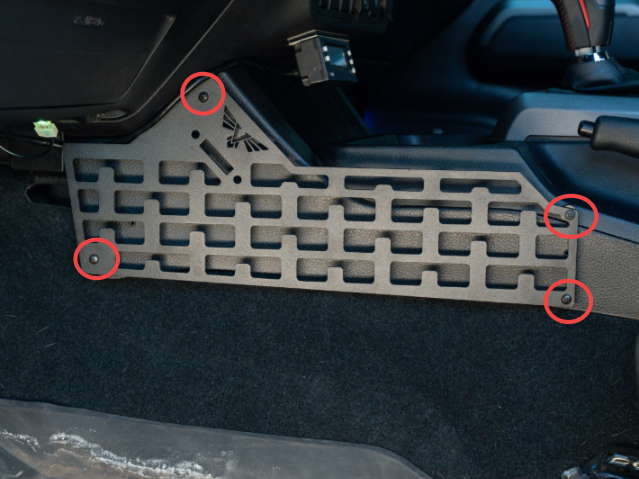

Line up the panel so its flush with the center console. Mark the screw holes with a pick or a sharpie.

Step 3 - Mounting - Drilling

Description

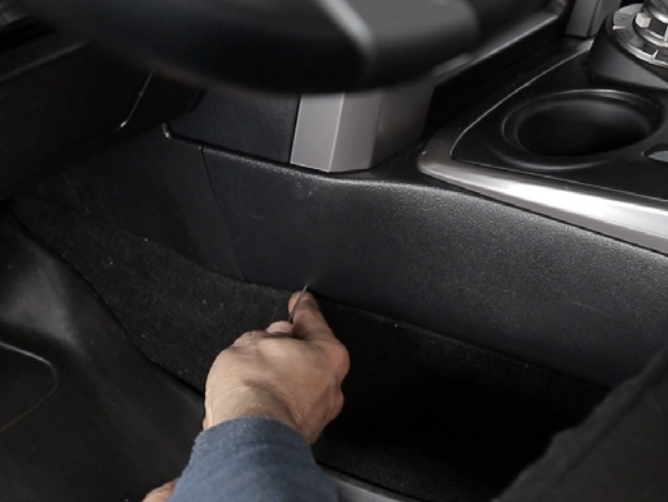

Use a drill bit or a pick to puncture a hole into the plastic but make sure the pick is smaller than the screw or use a 1/8” drill bit. Be sure you only drill deep enough to get the screws started.

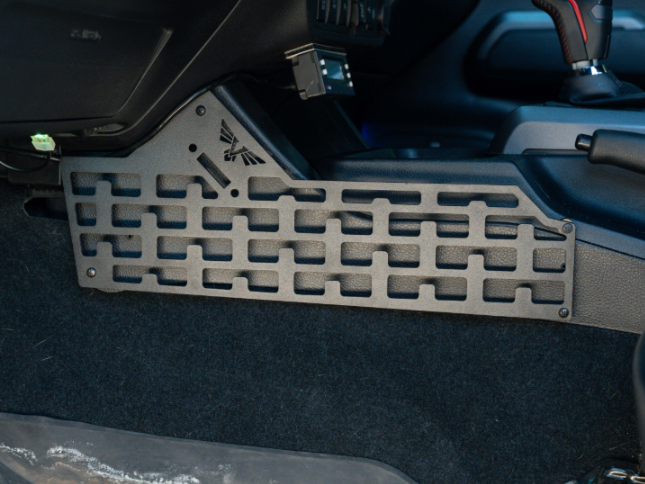

Step 4 - Mounting - Installing the Panel

Description

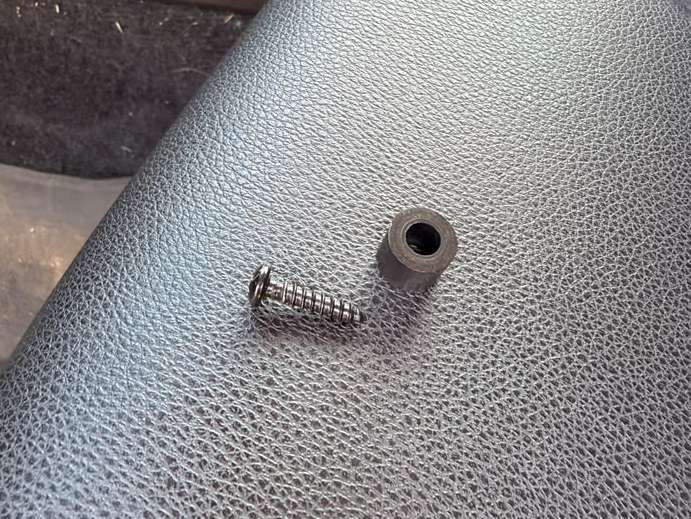

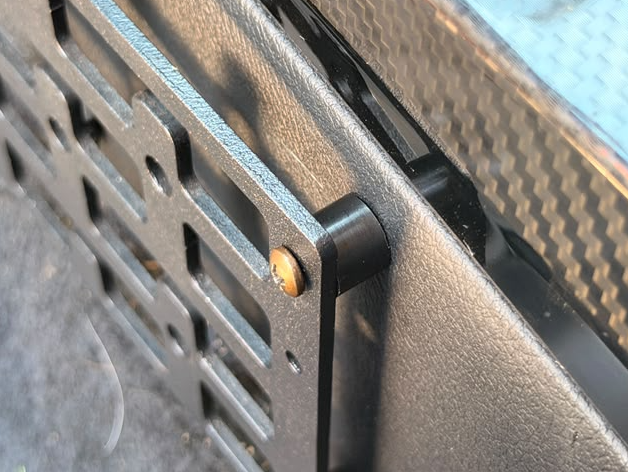

Install the panel using a Phillips screwdriver. Use 1 screw and 1 spacer per hole.

3rd Gen Tacoma
• 6 screws (3 per side)
• 6 spacers (3 per side)

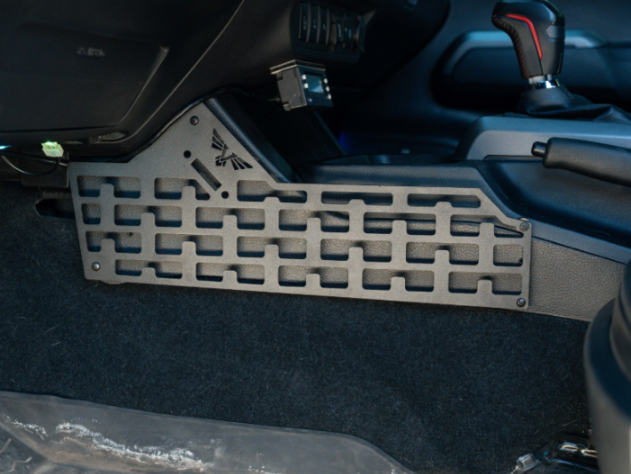

Step 5 - Final Check & Repeat!

Description

Do not over-tighten the screws but make sure they are snug. When you have completed 1 side, repeat the same steps on the other side.
