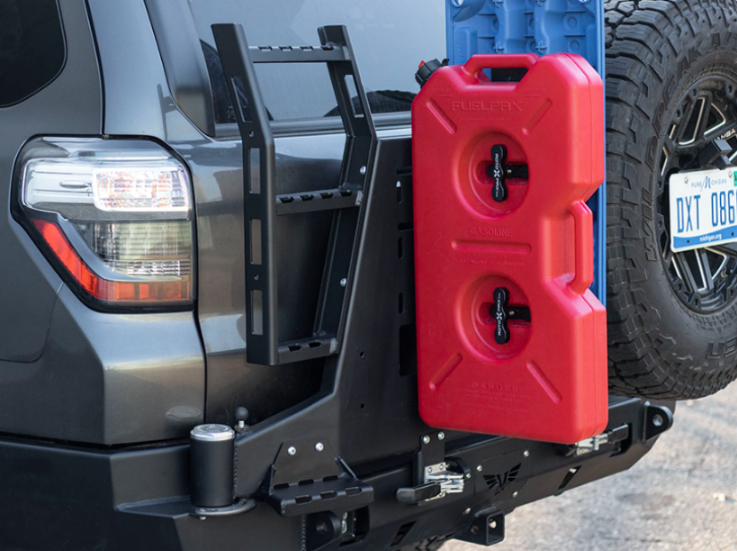

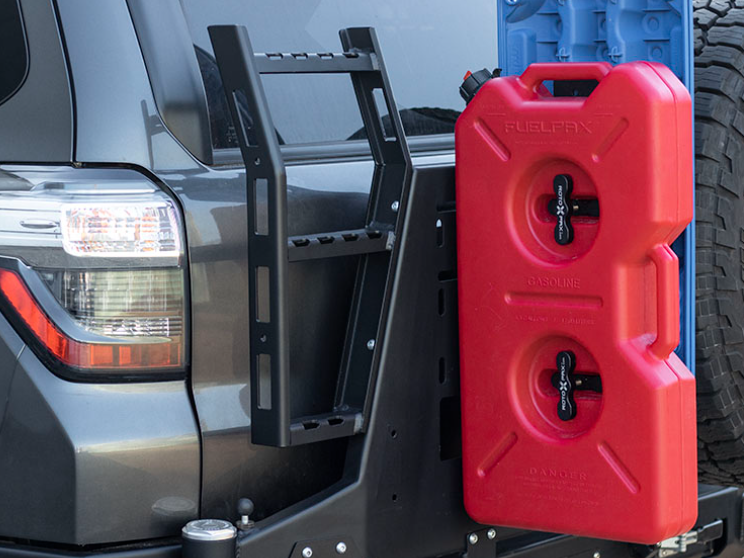

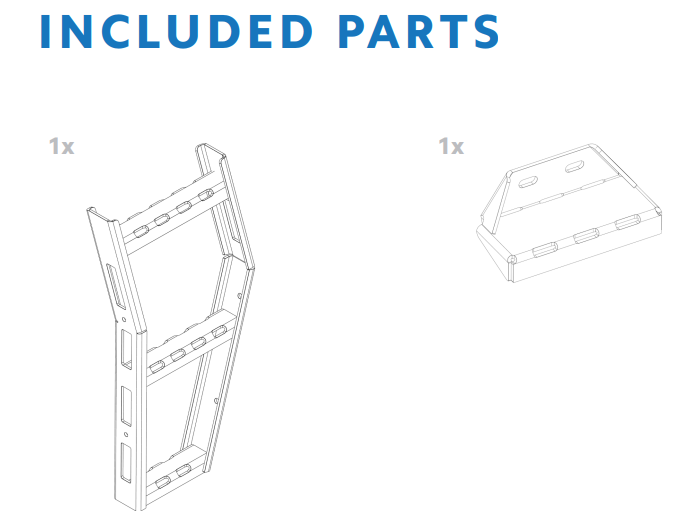

Full instructions on how to install the Adventure Carrier Ladder.
Questions or Support:
Phone: 269-353-1184
Email: info@victory4x4.com

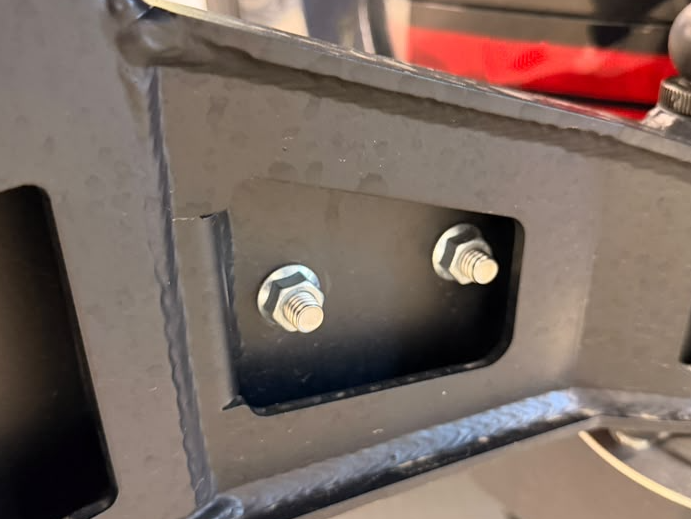

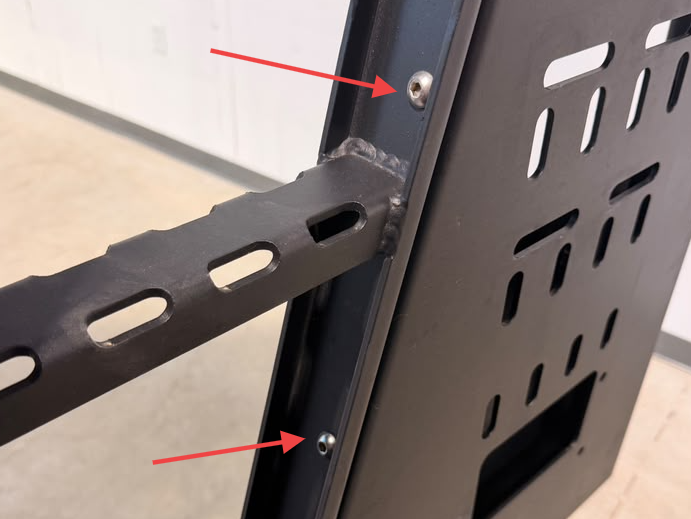

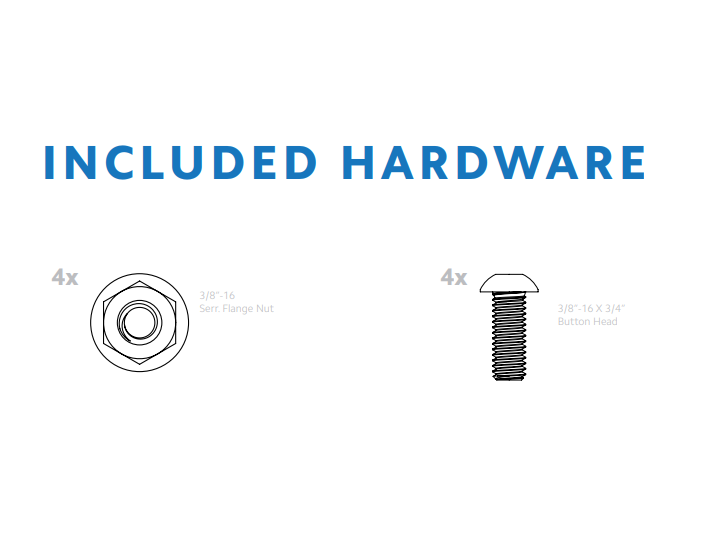

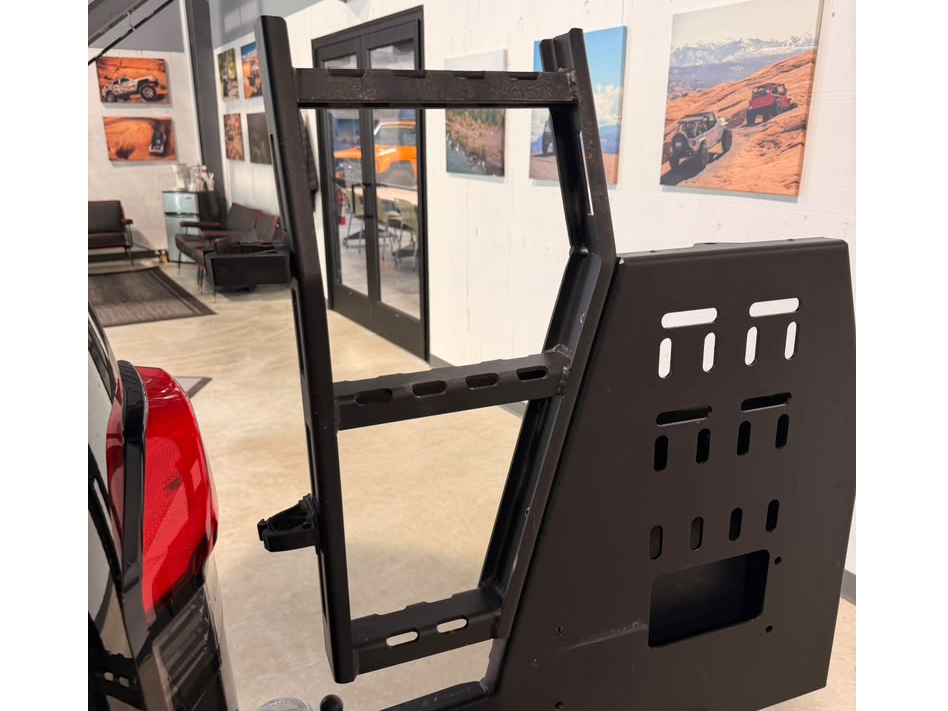

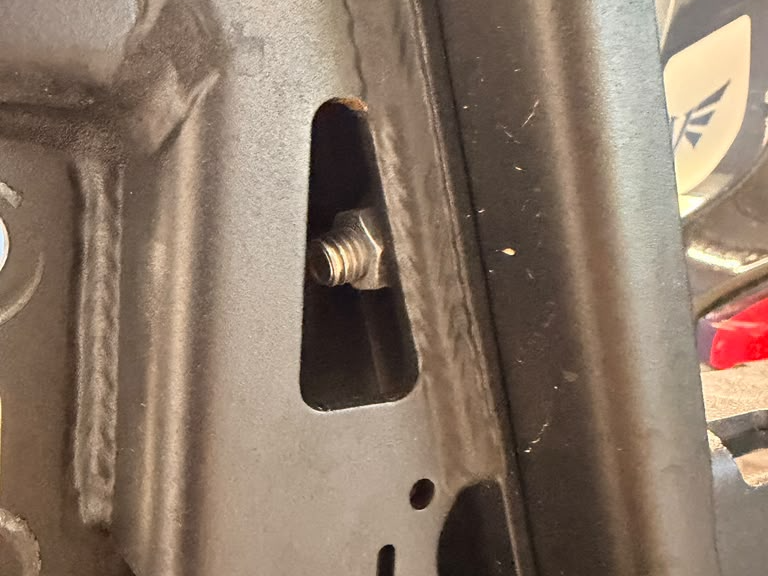

Start by mounting the ladder to the outside edge of the left carrier. Simply insert the 3/8”-16 serr. Flange nuts into the cutouts in the inside of the adventure carrier and hold them over the holes on the inside of the carrier and thread the 3/8”-16 X 3/4” button head bolts through the holes in the right side of the ladder and the left side of the carrier and into the nuts

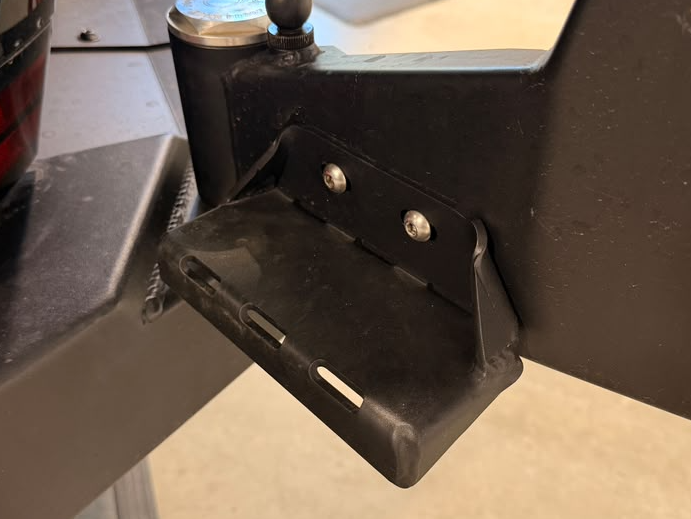

To finish the assembly, bolt the bottom step into the holes in the arm of the carrier, underneath the ladder using the 3/8”-16 X 3/4” button head bolts on the outside and of the carrier and the 3/8”-16 serr. Flange nuts on the inside.
Double check all bolts are tight and enjoy!
