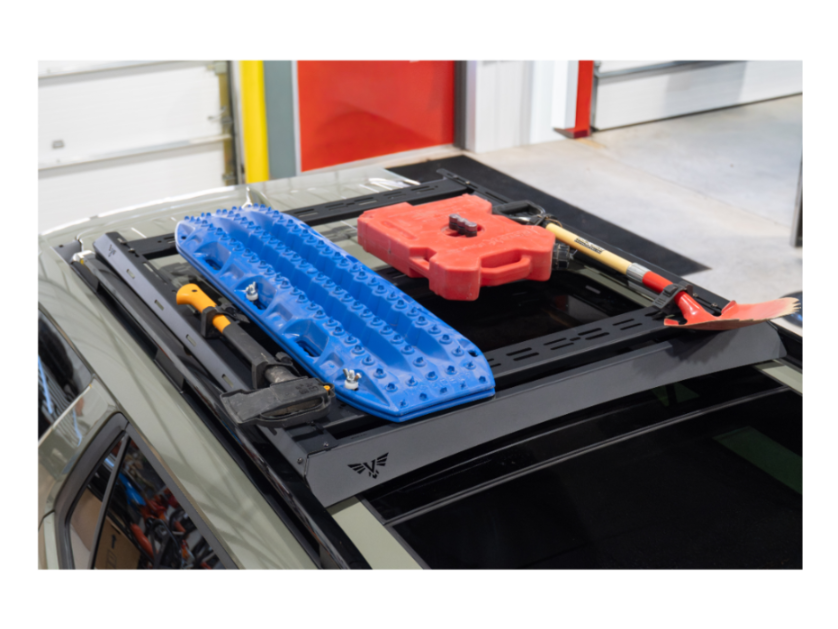

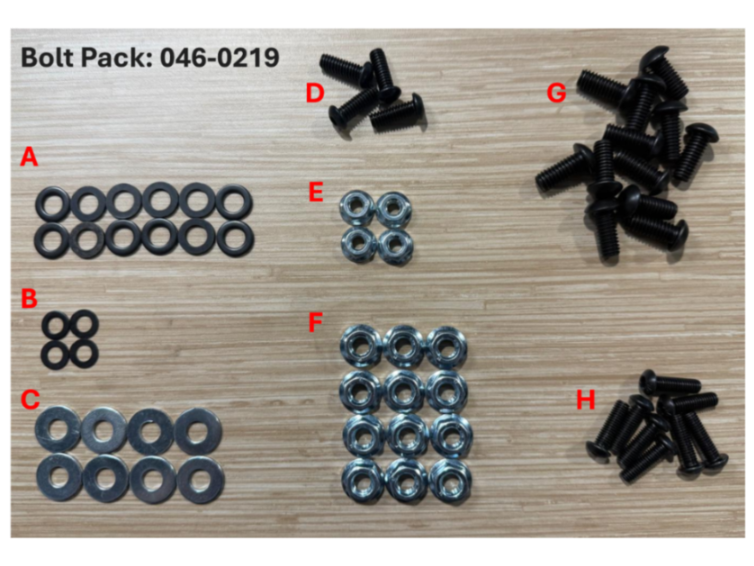

Step 1 - Hardware:

Description

(x12) M8 Flat Washers
(x4) 1/4" Flat Washers
(X8) Thick 1/4" Flat Washers
(x4) 1/4"-20 x 3/4" Button Head Bolts
(x4) 1/4"-20 Serrated Flange Nuts
(x12) 5/16"-18 Serrated Flange Nuts
(x12) 5/16"-18 x 3/4" Button Head Bolts
(x8) M6 x 1.0 x 20mm Button Head Bolts

***Some of our products use universal bolt packs; not all included hardware may be used.

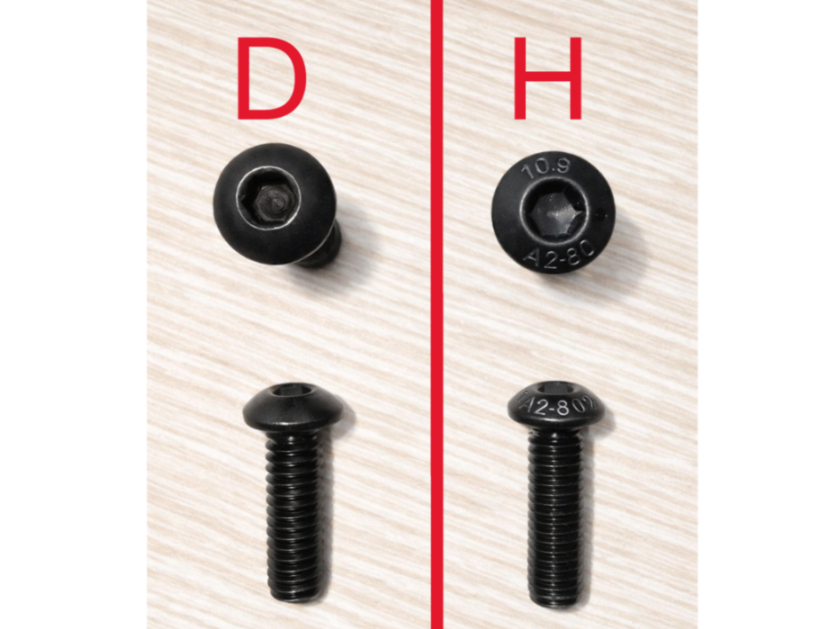

Step 2 - Don't Mix Up "D" & "H" Hardware:

Description

Identify "H" hardware before install - they are the only bolts with writing on the bolt head.

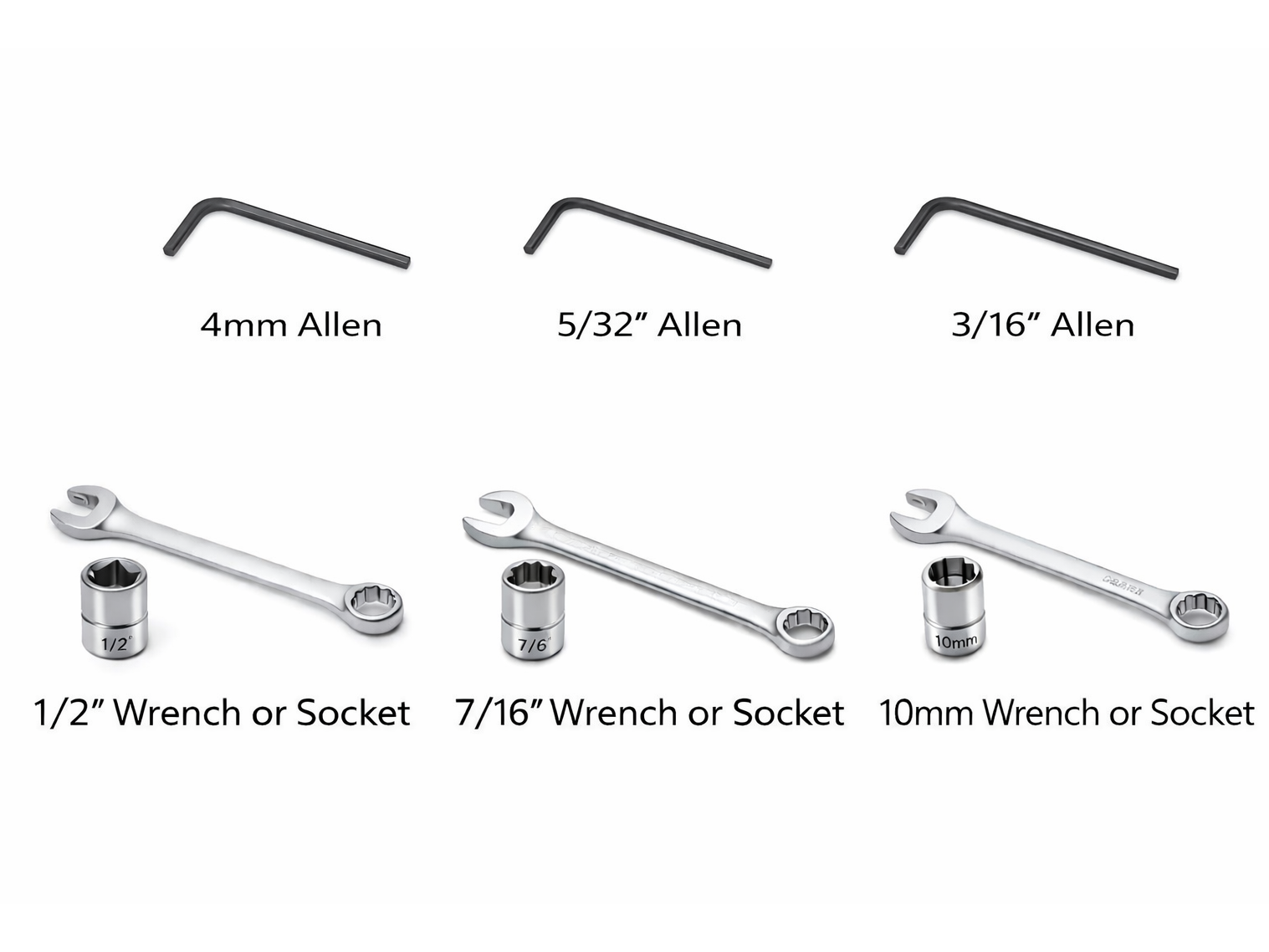

Step 3 - Required Tools:

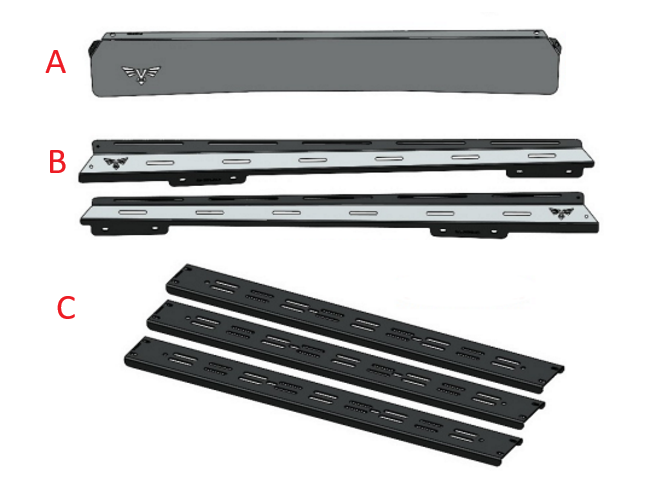

Step 4 - Included Parts:

Description

Front Fairing
Side Rails (L&R)
(x3) Cross Bars

Step 5 - Start Install:

Description

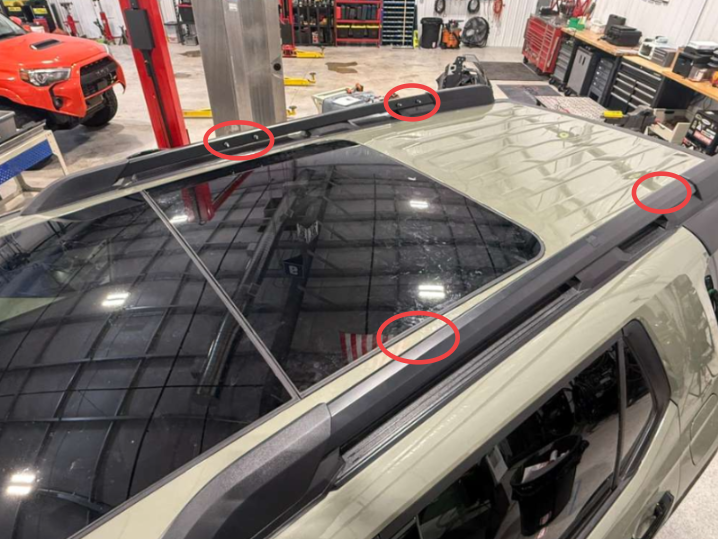

Remove the factory (8) bolts shown above using a 10mm wrench. (If applicable)

Step 6

Description

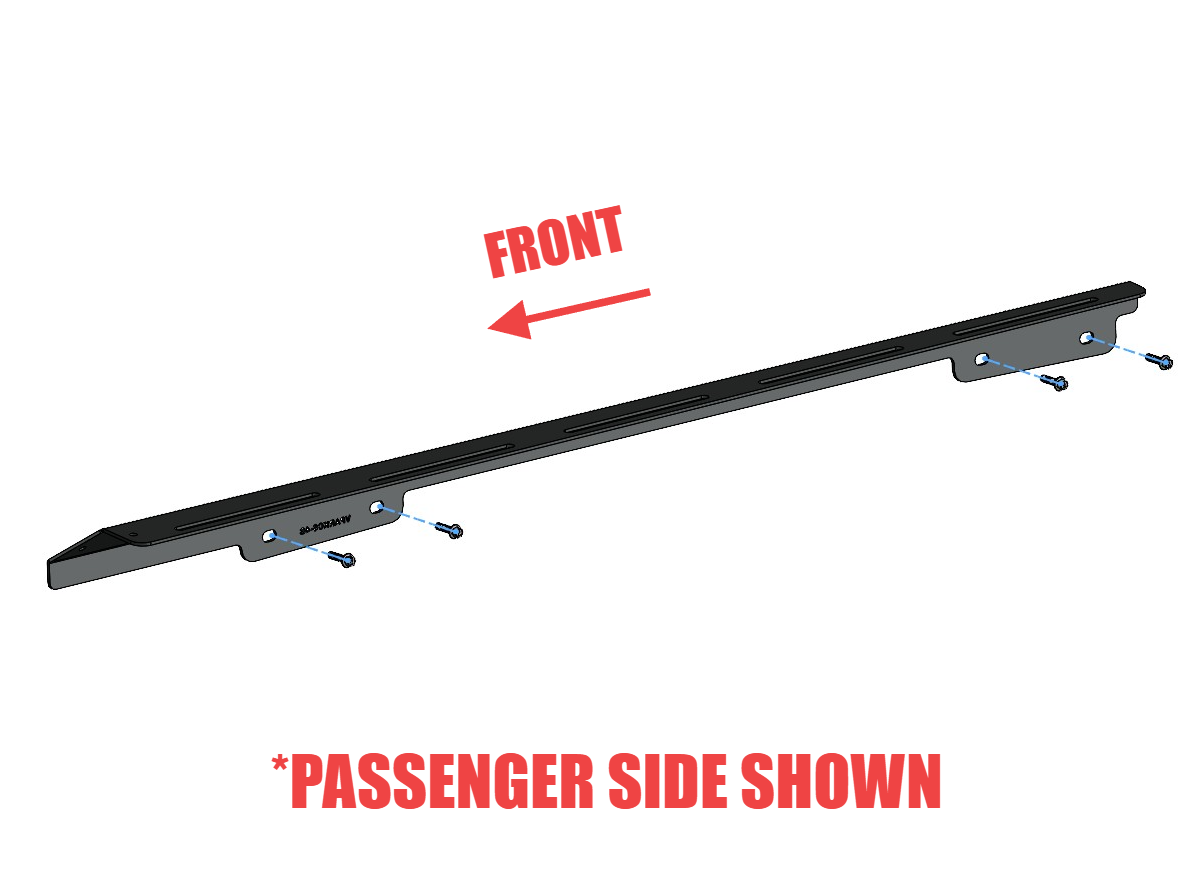

Install the supplied side rails onto the inside of the factory risers using the factory hardware. Be sure that the rails are pointing in toward the center of the vehicle, the victory logo will be towards the back of the vehicle. Leave these fasteners finger tight for now.

NOTE: If your vehicle did not come with factory hardware installed, use the supplied M6x1x20mm button heads and 1/4" USS Flat washers.

Step 7

Description

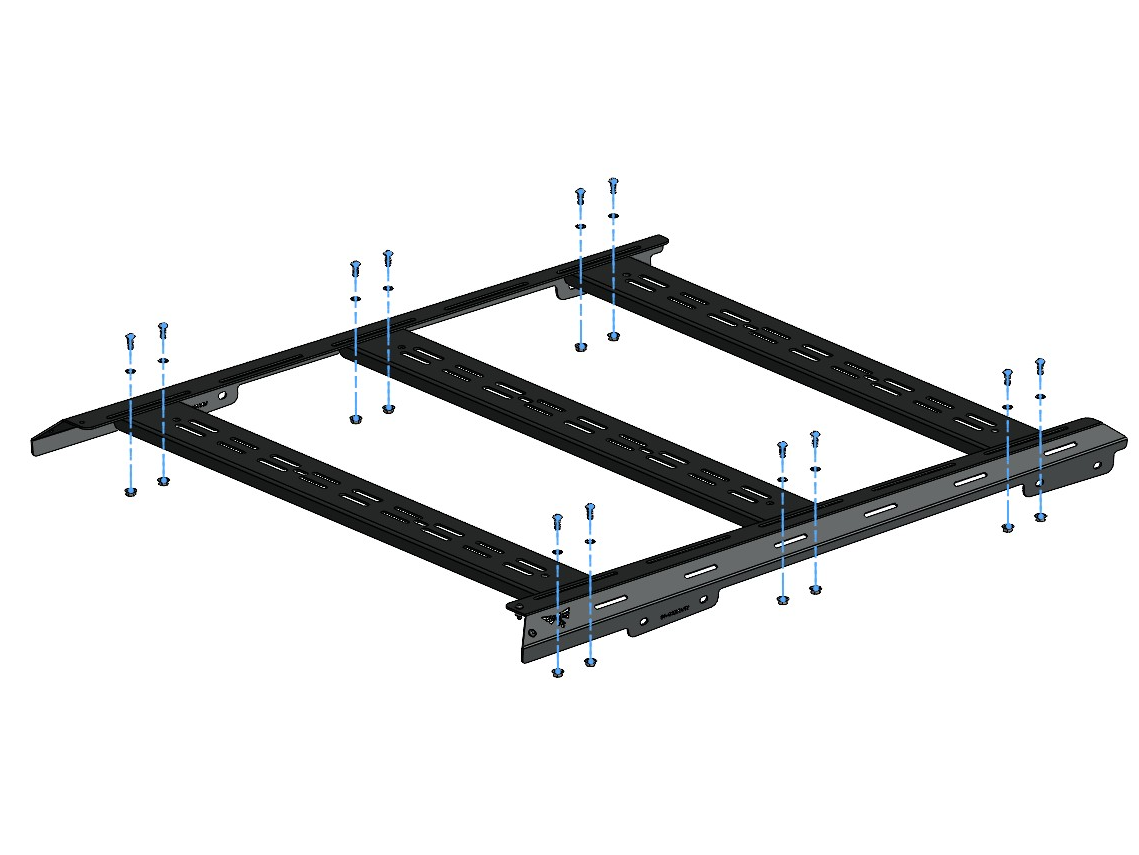

Using (4) 5/16"-18 button heads, washers and flange nuts per cross bar, install the (3) included crossbars in your preferred configuration.

Step 8

Description

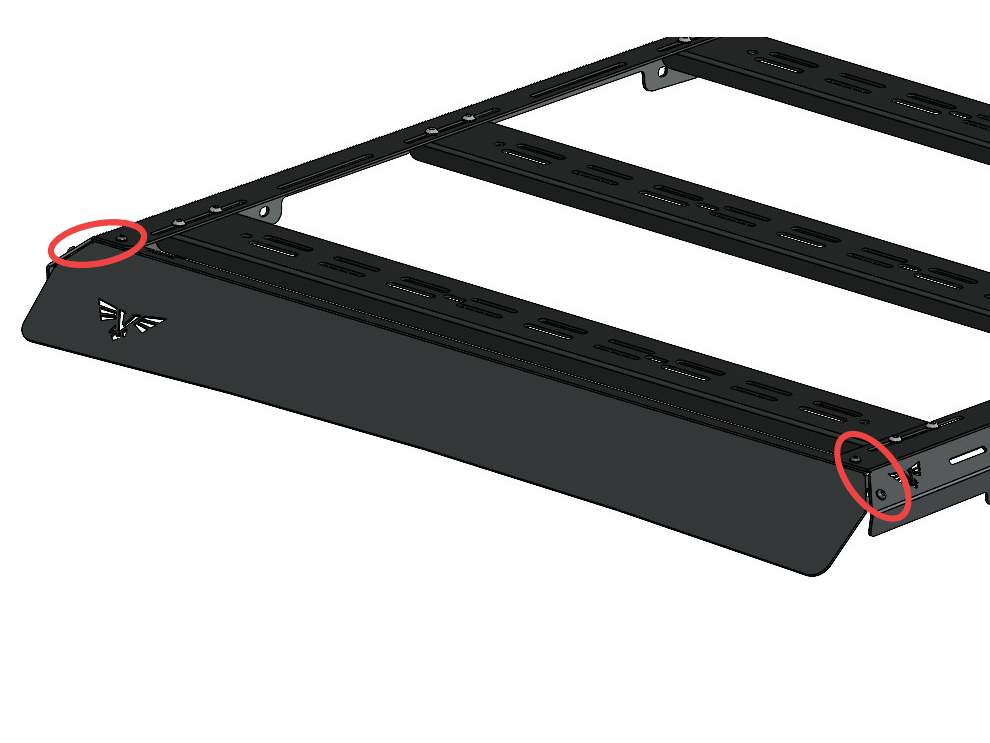

Using (4) of the 1/4"-20 button heads, washers, and flange nuts, fasten the front fairing to the side rails as shown.

Step 9

Description

Go back and fully tighten all hardware. Your installation is complete!
