Step by step on how to install a center console molle panel for the Lexus GX460/470
Questions or Support:
Phone: 269-353-1184
Email: info@victory4x4.com

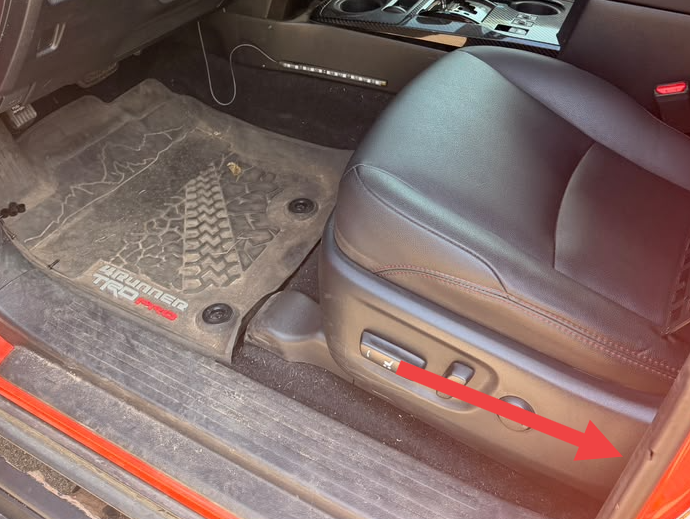

- Move your seat all the way back to make as much room as possible before installing the panel.

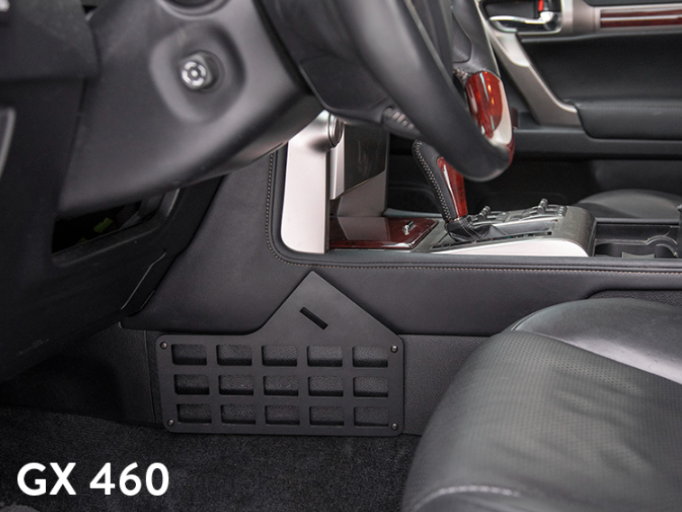

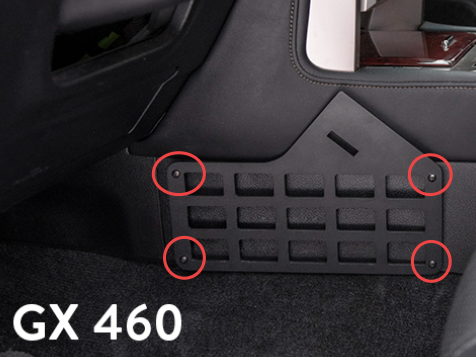

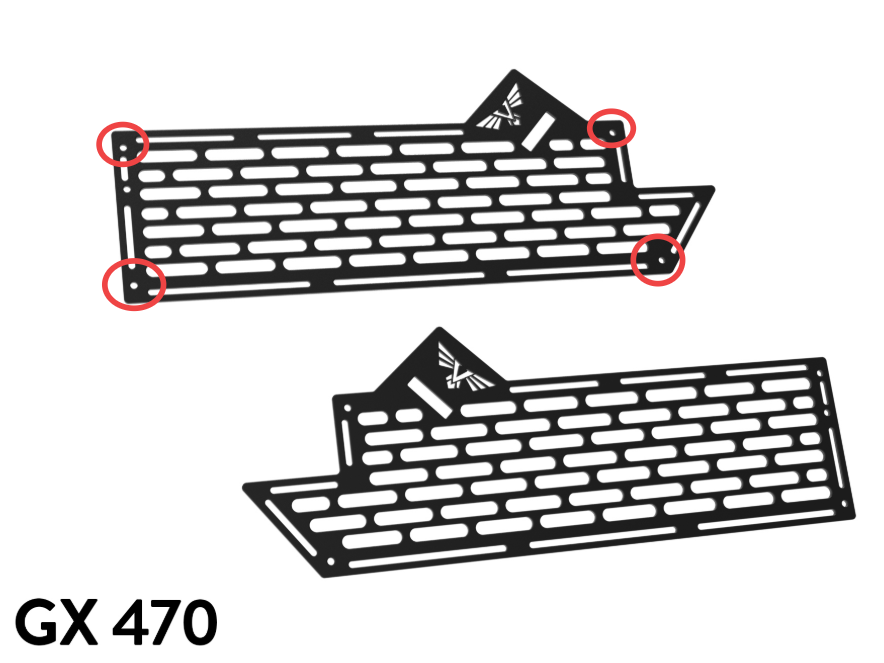

- Line up the panel so its flush with the center console. Mark the screw holes with a pick or a sharpie.

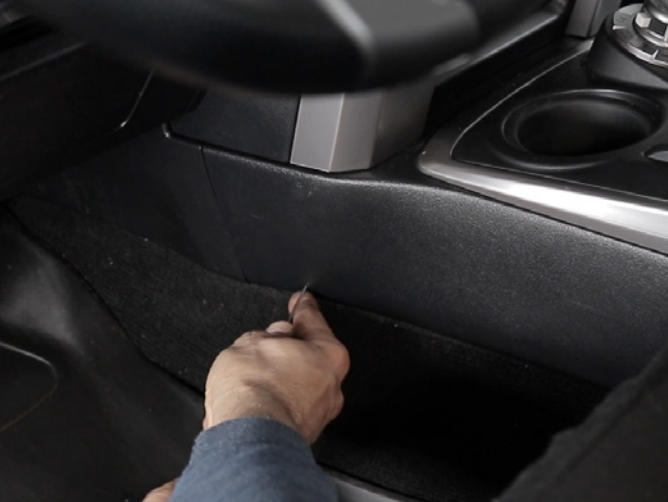

- Use a drill bit or a pick to puncture a hole into the plastic but make sure the pick is smaller than the screw or use a 1/8” drill bit. Be sure you only drill deep enough to get the screws started.

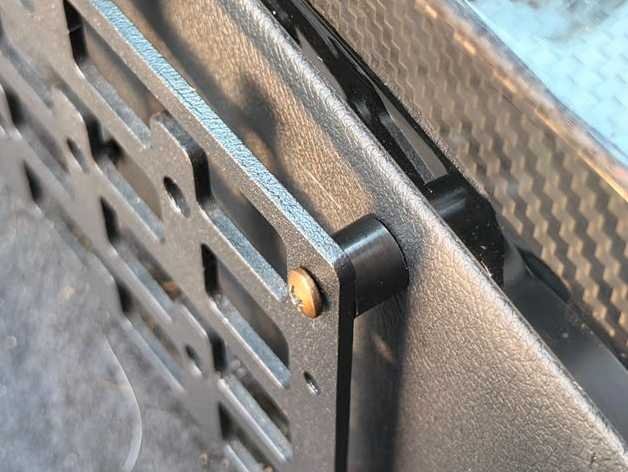

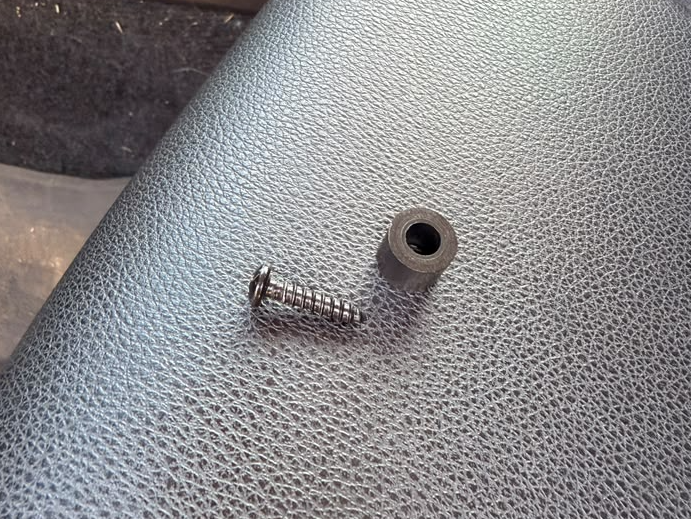

- Install the panel using a Phillips screwdriver. Use 1 screw and 1 spacer per hole.
GX470
• 8 screws (4 per side)
• 8 spacers (4 per side)
GX460
• 8 screws (4 per side)

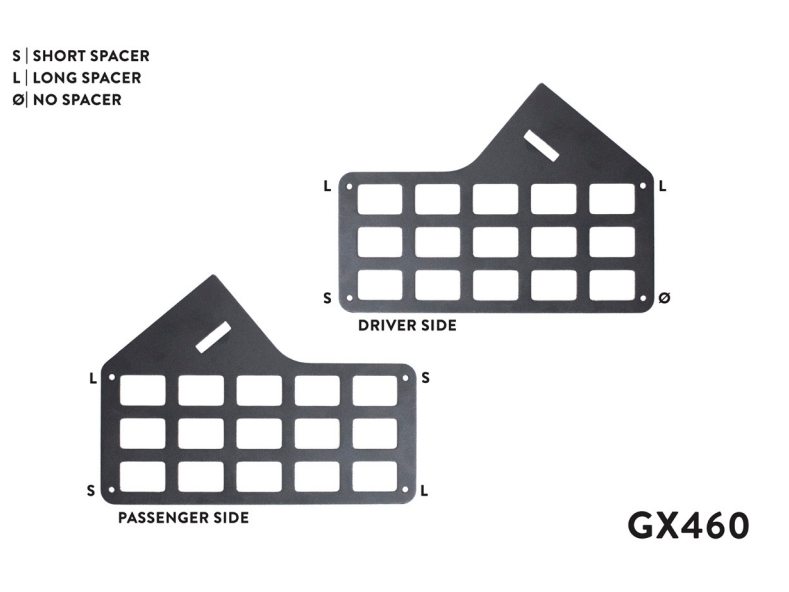

• 7 spacers (see locations in image 3)
- Do not over-tighten the screws but make sure they are snug. When you have completed 1 side, repeat the same steps on the other side.

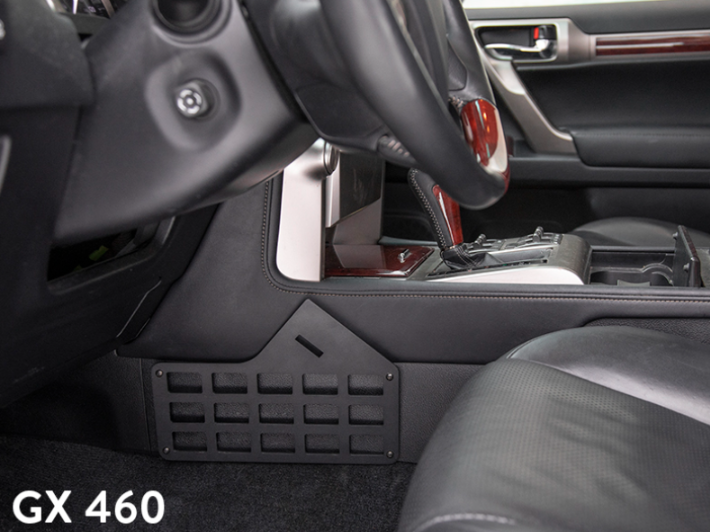

- Congrats! Your installation, is now complete. Enjoy!
